LED Wall Washer Light
Description
LED wall washer light or LED bar utilizes high efficiency and large power LED
as the light source, and high effect constant current power supply as driver.
Its actual luminous efficiency can reach beyond 90 Lm/W. It has two control

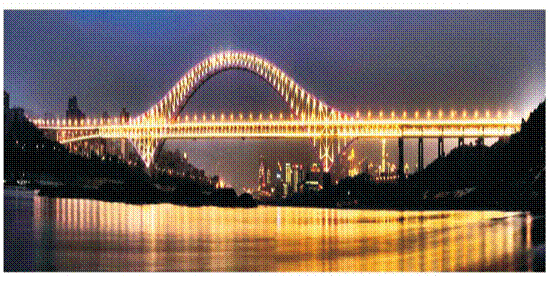

ways: inner and outer control. This LED architectural lighting is widely used
in landscape lighting projects, such as hotel, mansion, plaza, bridge, etc.
Advantages
1. The body of LED wall washer light is made of high quality aluminum alloy, which
is with perfect heat-dissipation, anti-corrosion, heat resistance and
anti-extrusion.
2. Surface cover adopts thickening tempered glass, which is with excellent
shock and rub resistance. Besides, it has good heat dissipation, which can
protect the light and make the light safe to use.
3. LED bar uses silicone rubber to seal and epoxy resin to encapsulate, which
assures excellent water resistance of the light.
4. PMMA optical lens are employed to manufacture LED wall washer light. 8°,
15°, 25°, 35°, 45°, 60°and 75°beam angles can be selected to realize various
light effects.
5. Both light source and power supply for this LED architectural lighting have
passed strict waterproof test and can be used outdoors for a long time.
6. The input voltage for LED wall washer can be 12V, 24V, 110V, 220V or
110-220V.
7. High quality LED beads are adopted to ensure high stability and long service
life of LED wall washer light.
8. It is eco-friendly and harmless to eyes and skin.
9. Humanized structure design makes it easy and convenient to install and
maintain the light.
Parameters
|
Model |
KSZ-XQD-P18A01 |
|
Input Voltage |
AC100 to 240 (V) |
|
Power |
18 W |
|
Drive Method |
Constant Current Drive |
|
Beam Angle |
15, 30, 45, 60, 90 (°) |
|
Protection Grade |
IP65 |
|
Electrical Safety Level |
AC100 to 240 (V) |
|
Control Mode |
DMX512 Standard |
|
Size |
52 × 1000 × 110 (mm) |
|
Material |
AL + Condenser Lens |
|
Operating Temp. |
-25℃ to 45℃ |
Parameters of LED Bar
|
Product Name |
LED Wall Washer Light |
|
Model |
KSZ-XQD-P36A01 |
|
Input Voltage |
DC24V/AC100V to 240V |
|
Power |
36 W |
|
Drive Method |
Constant Current Drive |
|
Beam Angle |
15, 30, 45, 60, 90 (°) |
|
Protection Grade |
IP65 |
|
Electrical Safety Level |
DC24V Ⅲ |
|
Control Mode |
DMX512 Standard |
|
Size |
63× 1000 × 98 (mm) |
|
Material |
AL + Condenser Lens |
|
Operating Temp. |
-25℃ to 45℃ |
Parameters
|
Product Name |
LED Wall Washer Light |
|
Model |
KSZ-XQD-P72A01 |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
72 W |
|
Drive Method |
Constant Current Drive |
|
Beam Angle |
15, 30, 45, 60, 90 (°) |
|
Protection Grade |
IP65 |
|
Electrical Safety Level |
AC100V to 240V Ⅰ |
|
Control Mode |
DMX512 Standard |
|
Size |
96× 1000 × 69 (mm) |
|
Material |
AL + Condenser Lens |
|
Operating Temp. |
-25℃ to 45℃ |
Parameters
|
Product Name |
LED Wall Washer Light |
|
Model |
KSZ-XQD-P36A02 |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
36 W |
|
Drive Method |
Constant Current Drive |
|
Beam Angle |
15, 30, 45, 60, 90 (°) |
|
Protection Grade |
IP65 |
|
Electrical Safety Level |
AC100-240V Ⅰ |
|
Control Mode |
DMX512 Standard |
|
Size |
74 × 1000 × 67 (mm) |
|
Material |
AL + Condenser Lens |
|
Operating Temp. |
-25℃ to 45℃ |
