LED High Bay Light
Application
Our LED high bay light (LED mining light) features high brightness,
anticorrosion, anti-dust and water resistance.

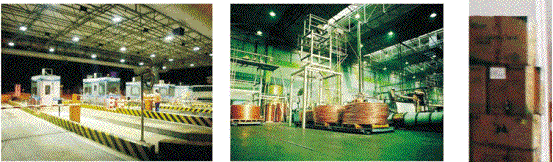

1. This industrial LED light is widely used in places with inflammable and
explosive materials, such as factory, gas station, highway toll station, etc.
2. It is suitable for lighting at large places where high brightness is needed,
such as supermarket, exhibition hall, gym, smelter, and so on.
Advantages
1. LED Light Source
LED high bay light adopts high power LED as light sources, which features high
brightness, high thermal conductivity, low brightness decay, pure light color,
no shadow, etc.
2. Long Service Life
Lifespan of the light is 40000 hours, which means there is no need to replace
lamp for 5 years by using 12 hours to18 hours every day. With unique integrated
design of heat dissipator and lamp housing, LED high bay light can diffuse heat
efficiently, thereby reduce the temperature in the lamp body and ensure
lifespan.
3. Energy Saving
High power LED light source combined with imported high efficiency power supply
helps to save 60% electricity compared with sodium light.
4. Excellent Color Rendering
Light from LED high bay light eliminates depression caused by too high or too
low color temperature from traditional lamps. Various colors are optional to
meet different environmental requirements.
5. Eco-Friendly
LED mining light does not contain lead, mercury or other pollution elements.
6. This industrial LED light can replace traditional light with E40 lamp
holder.
Parameters
|
Product Name |
LED High Bay Light |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
60 W/90 W |
|
Beam Angle |
45º, 90º, 120º |
|
Color Temperature |
2700 k to 7000 k |
|
Lumens |
6000 ± 5% (Lm) |
|
CRI |
Ra ≥ 70 |
|
Size |
Φ367 × 194 (mm) |
|
Material |
AL |
|
Protection Grade |
IP65 |
|
Total Harmonic Distortion |
≤ 20% |
|
Product Name |
LED High Bay Light/LED Mining Light |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
114 W |
|
Beam Angle |
45º, 90º, 120º |
|
Color Temperature |
2700 k to 7000 k |
|
Lumens |
11 000 ± 5% (Lm) |
|
CRI |
Ra ≥ 70 |
|
Size |
Φ500 × 572 (mm) |
|
Material |
AL |
|
Protection Grade |
IP65 |
|
Total Harmonic Distortion |
≤ 20% |
|
Product Name |
LED High Bay Light |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
200 W |
|
Beam Angle: |
45°/90°/120° |
|
Color Temperature |
2700 k to 7000 k |
|
Lumens |
20000 ± 5% (Lm) |
|
CRI |
Ra ≥ 70 |
|
Size |
Φ500 × 450.9 (mm) |
|
Material |
AL |
|
Protection Grade |
IP65 |
|
Total Harmonic Distortion |
≤ 20% |
|
Product Name |
LED High Bay Light/LED Mining Light |
|
Input Voltage |
AC100V to 240V 50/60Hz |
|
Power |
100 W (Customizable) |
|
Beam Angle |
45°/90°/120° |
|
Color Temperature |
2700 k to 7000 k |
|
Lumens |
10000 ± 5% (Lm) |
|
CRI |
Ra ≥ 70 |
|
Size |
Φ532 × 382 (mm) |
|
Material |
AL |
|
Protection Grade |
IP65 |
|
Total Harmonic Distortion |
≤ 20% |
|
Note |
Single chip or integrated single light source can be used. |
As a professional LED products manufacturer, Apexls integrates development, manufacturing, sale and engineering service of LED lighting (street lamp, fluorescent lamp, LED tube, LED down light, LED flood light, etc.), LED display and LED power supply. Our LED products have passed various certificates, such as ISO, CE, ROSH, FCC, UL, CCC, GMC, etc. Apexls products are widely sold to America, Korea, Ireland, Japan, Britain, France, Germany, Russia, India, Indonesia, Singapore, etc.
