Introduction
Circular LED display is composed of several cabinets in different
specifications. It can be used outdoors and its size can be adjusted. Our
circular LED screens are highly appraised for good display effect, thin screen,
bright color, rain-proof feature, light weight, convenient installation, fast
response speed, high reliability, long service life, high installation
precision and beautiful appearance. In addition to round led screen or round
led display, Shenzhen Apexls Optoelectronic is also able to supply LED displays
in any shape according to customers’ specific requirements.
Performance
of Circular LED Display
1. Wide Viewing Angle
This circular LED video wall provides a wide perspective for audience. People
can see it from the angle of 360°.
2. Perfect Effect
Round led screen or round led display makes the perfect combination between
dynamic images modern architecture.
3. Stable Performance
Our circular LED displays use advanced imported materials from Japan, America
and other countries, resulting in good stability, low noise, low energy
consumption, etc.
4. Strong Damage-Resistance Ability
Circular LED screen has good antistatic ability, perfect waterproof, dustproof,
lightning protection and anti-weathering ability.
5. Easy Operation
Simple structure and easy operation enable clients to save much money, labor
and worries.
6. Environmentally Friendly
Apexls circular LED displays are environmentally friendly and energy-saving.

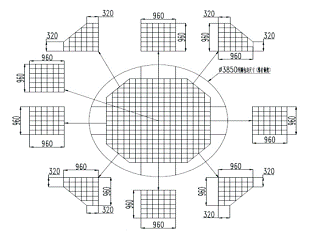

Dimension of Circular LED Screen
Technical Parameters of Circular LED Display
Model |
PH10 |
Pixel Pitch |
10 mm |
Pixel Composition |
1R1G1B |
Pixel Density |
10000 pixels/m2 |
LED Encapsulation |
DIP 346 |
Scanning Mode |
1/4 |
Screen Luminance |
≥ 6800 nit |
Average Power of Whole Screen |
3.33 kW |
Maximum Power of Whole Screen |
7.75 kW |
Service Environment |
Outdoor |
Total Resolution Ratio |
352 × 352 |
Overall Size |
Inside Diameter: 3.42 m; Outside Diameter: 4.12 m; Total Area: 12.4 m2 |
Refresh Rate |
800 Hz to 10000 Hz (It differs depending on driver chips.) |
Grayscale/Grey Level |
4096-65536 (It differs depending on driver chips.) |
AC Input Voltage |
110-240V ±10% |
Power Input Frequency |
50/60 Hz |
Brightness Adjustment Level |
Grade 100 Automatic or Manual Adjustment |
Color Temperature |
3200 K-9500 K (Adjustable) |
Working Temperature Range |
-20℃ to 60℃ |
Working Humidity Range |
10% to 90% |
Normal Service Life |
≥ 100000 hours |
Average Error-free Time |
≥ 5000 hours |
Malfunction Dot Rate |
< 0.0001 |
Apexls is a professional manufacturer and supplier of circular LED screens and LED video walls in China. In addition to circular LED display, we are also capable of supplying cubic LED display, flexible LED display, cylinder LED display, pop can LED display, advertising LED display, brushed aluminum cabinet, die-casting aluminum cabinet, curtain LED display and high definition LED display. Our round led screens or round led displays have passed CE, ROHS, FCC and 3C certifications. If you have interest in our circular LED screens, please feel free to contact us.
