LED Panel Light
Description
LED panel light is a high grade indoor lighting product. It utilizes
ultra-bright SMD LED as light source. Light beam passes through high
transmittance guide plate and forms uniform plane lighting effect. It has great
lighting effect and broadly applied at home, super market, office building and
other indoor places.
Application

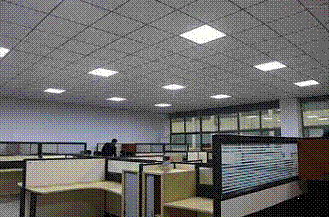

1. LED panel light or LED ceiling lamp can replace grille light and be
installed in ceiling.
2. It can be mounted in wall, which not only be used for lighting, but also
have aesthetic effect.
3. LED flat panel light can also be installed in vehicles, counters, etc.
Advantages
of LED Panel Light
1. Beautiful, Smooth and Clean Appearance
2. Environmental Protection
3. High Luminous Efficiency
4. Easy Installation
5. Soft Light: LED panel light employs a new area light source technique which
is similar to LCD backlight technique.
More Photos
Parameters of LED Flat Panel Light
|
Photo |
Model |
Specification |
|
|
|
KSZ-MB-P54A1206 |
Rated Power: 54 W |
CRI: > 70 |
|
Size: 1200 × 600 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External& Non-Isolation |
||
|
Light Source: 528Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 3900 to 4500 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P36A1203 |
Rated Power: 36 W |
CRI: > 70 |
|
Size: 1200 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External& Non-Isolation |
||
|
Light Source: 352Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 2700 to 3200 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P36A0606 |
Rated Power: 36 W |
CRI: > 70 |
|
Size: 600 × 600 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External& Non-Isolation |
||
|
Light Source: 352Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 2700 to 3200 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P48A0606 |
Rated Power: 48W |
CRI: > 70 |
|
Size: 600 × 600 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External& Non-Isolation |
||
|
Light Source: 464Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
5.Luminous Flux: 3600 to 4100 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
6.Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000Hrs |
||
|
|
KSZ-MB-P18A0603 |
Rated Power: 18 W |
CRI: > 70 |
|
Size: 600 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External |
||
|
Light Source: 160Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 1300 to 1600 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P27A0603 |
Rated Power: 27 W |
CRI: > 70 |
|
Size: 600 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External |
||
|
Light Source: 264Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 2000 to 2500 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P12A0303 |
Rated Power: 12 W |
CRI: > 70 |
|
Size: 300 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External |
||
|
Light Source: 110Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 900 to 1200 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P18A0303 |
Rated Power: 18 W |
CRI: > 70 |
|
Size: 300 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External |
||
|
Light Source: 160Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 1300 to 1600 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
|
|
KSZ-MB-P24A0303 |
Rated Power: 24W |
CRI: > 70 |
|
Size: 300 × 300 × 11 (mm) |
Viewing Angle: 120° |
||
|
Input Voltage: AC80V to 265V/50Hz to 60Hz |
Power Supply: External |
||
|
Light Source: 220Pcs, Lumenmax SMD3014 |
Material: 6063Aluminium & Acrylic |
||
|
Luminous Flux: 1800 to 2200 (LM) |
Installation: Hoisting or Surface Mounted |
||
|
Color Temperature: 3000K to 7500K |
Life Span: ≥ 50,000 Hrs |
||
Apexls has become one of the largest suppliers and manufacturers of LED office lighting products in China. As a professional LED products manufacturer, Apexls integrates development, manufacturing, sale and engineering service of LED lighting (LED panel light/LED flat panel light/ceiling lamp, street lamp, fluorescent lamp, LED tube, LED down light, LED flood light, etc.), LED display and LED power supply. Our LED products have been sold to more than 80 countries and areas in Asia, Europe, North America, Middle East, etc.
